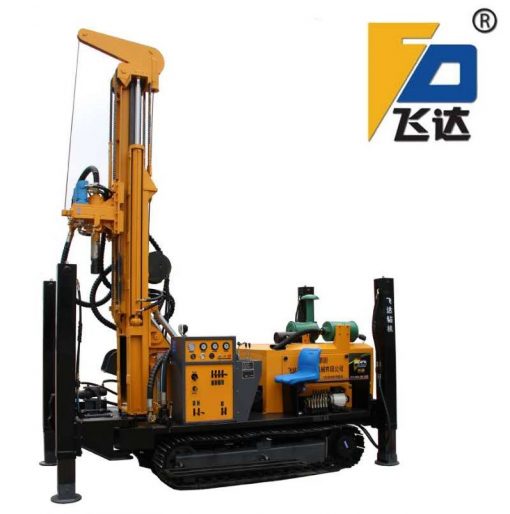

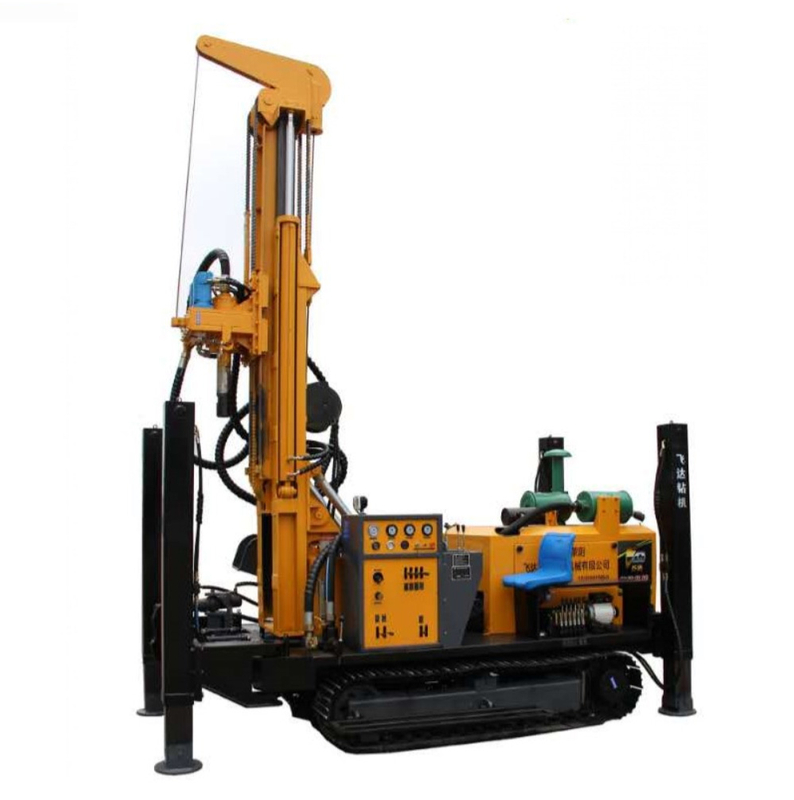

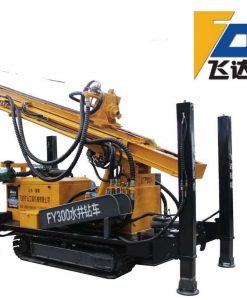

Specifications of self-propelled well drilling machine FY300A
| Type Parameter | FY300A |
| Weight (T) | 7 |
| Drilling hole diameter | 140 – 325 |
| Bore depth | 300 |
| 1 time travel length (m) | 3.4 |
| Speed (km/h) | 2.5 |
| Climbing ability (Max) | 30 |
| Server Power (KW) | 75.8 |
| Work pressure (mpa) | 1.7 – 3.0 |
| Air loss (m 3 /min) | 17 - 35 |
| Diameter of drill rod (m) | 76 89 102 |
| Drill rod length (m) | 1.5 2.0 3.0 |
| Lifting force (T) | 16 |
| Rotational speed (rpm) | 40 - 70 |
| Torque (Nm) | 5700 – 7500 |
| Dimensions (mm) | 4100 x 1950 x 2600 |
Specifications of self-propelled well drilling machine FY300A
| Type Parameter | FY300A |
| Weight (T) | 7 |
| Drilling hole diameter | 140 – 325 |
| Bore depth | 300 |
| 1 time travel length (m) | 3.4 |
| Speed (km/h) | 2.5 |
| Climbing ability (Max) | 30 |
| Server Power (KW) | 75.8 |
| Work pressure (mpa) | 1.7 – 3.0 |
| Air loss (m 3 /min) | 17 - 35 |
| Diameter of drill rod (m) | 76 89 102 |
| Drill rod length (m) | 1.5 2.0 3.0 |
| Lifting force (T) | 16 |
| Rotational speed (rpm) | 40 - 70 |
| Torque (Nm) | 5700 – 7500 |
| Dimensions (mm) | 4100 x 1950 x 2600 |
